Druck DPI620 Multifunctional Calibrator - Višenamjenski procesni kalibrator.

he Druck DPI 620 Genii Multifunction Calibrator is a flexible modular calibration system that uses three basic components to perform multiple functions that formerly required a wide range of different instruments. The basic component of this system is the Druck DPI 620 Genii multifunction calibrator, a next-generation, ultra-compact, electrical, frequency, and temperature calibrator, which provides simultaneous measurement and source capabilities. Pressure measurement is provided by interchangeable pressure modules that can be attached to the calibrator by a pressure module carrier. Optional HART field communicator would replace the need for a stand-alone HART communication unit. A Foundation Fieldbus communicator is also available as an option. If pressure generation is required, the calibrator and pressure module can be attached to one of three pressure generation stations, to form a high performance, full-integrated pressure calibrator.

Druck DPI 620 Genii multifunction calibrators can measure and source mA, mV, V, Ohms, frequency, and a variety of RTDs and T/Cs. Druck DPI 620 Genii multifunction calibrators provide an isolated 24V loop power supply to energize devices and control loops and a stabilized DC voltage supply for ratio metric transducers. A HART digital configurator is optional for set-up and calibration adjustments of HART devices. As the next generation model, the DPI 620 Genii incorporates an advanced touch screen and new user interface for a flatter menu structure and greater ease-of-use. A completely new digital platform supports HART and Fieldbus applications. The intuitive dashboard allows for quickly launching applications. The compact and lightweight DPI 620 Genii multifunction calibrator is designed for rugged field applications, with a robust casing and weather-proofing to IP 65.

Optional HART / Foundation Fieldbus Communicator

One DPI 620 Genii can take the place of a calibrator and a HART / Foundation Fieldbus communicator, saving you thousands of dollars.

• Hand-held HART / Foundation Fieldbus communicator with color interface
• Complete Device Description (DD) Library
• Free-of-charge DD Library updates
• Robust, weatherproof and extremely compact

Optional Modules:

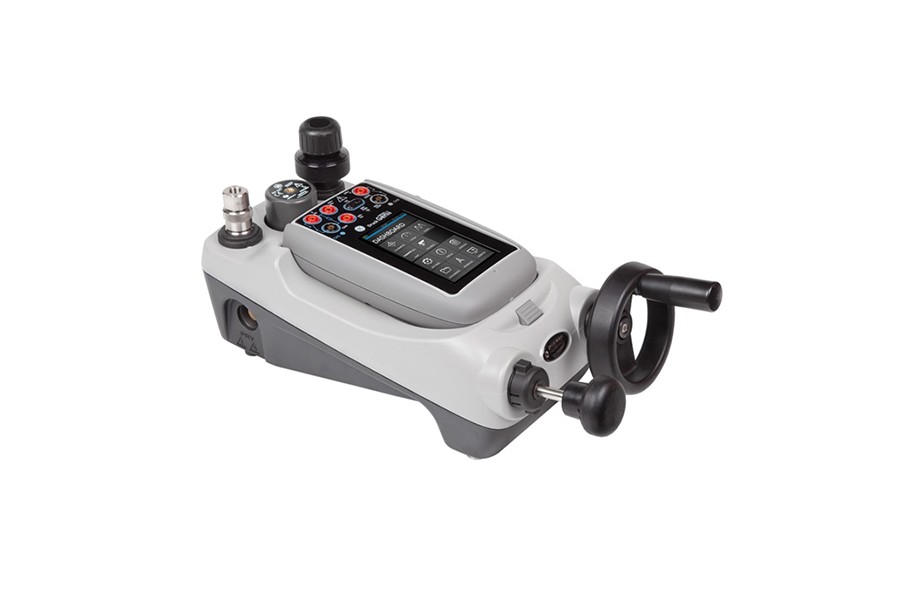

The Druck Pressure Station is available in three models: the PV621G, a pneumatic pressure generator for pressures 95% vacuum to 20 bar; the PV622G, a pneumatic pressure generator for pressures 95% vacuum to 100 bar; and the PV623G, a hydraulic pressure generator for pressures up to 1000 bar. Each Druck pressure station is designed for stand-alone operation as a pressure generator and can replace conventional hand pumps to provide greater efficiency and ease of use. Druck pressure stations can also be used on the workbench as comparators.

The Druck PM620 Pressure Module features a simple screw fit, making both the pressure and electrical connections without the need for tools, sealing tape, cables or plugs. Digital characterization allows interchangeability without set-up or calibration. Druck PM620 pressure modules can be changed in a few seconds to re-range an instrument at a fraction of the cost of a new one.

Modules can be used in conjunction with the relevant pneumatic or hydraulic pressure station and the Druck DPI 620 Genii multifunction calibrator to form an integrated pressure calibrator for test and calibration of pressure instruments including transmitters, transducers, switches, gauges, indicators, and recorders. Alternatively, modules can be combined with the pressure station by the Druck MC620 module carrier, which adds a dual channel pressure measurement capability that can be re-ranged in seconds.

Features

• Multi-function capabilities
• Electrical, frequency, temperature, and pressure
• HART & Foundation Fieldbus options available
• Touch screen display for greater ease of use
• Dashboard feature quickly launches applications
• All system components are fully interchangeable
• Allows significant inventory reductions
• Simplifies training and improves operator safety
• Reduces cost of ownership
• Compact & lightweight, but rugged for field applications
